AceCube Versatile Fuel Tanks
Stackable, Secure, and Site-Ready Fuel Storage for Industrial Applications
AceCube Versatile Fuel Tanks are a premium, transport-approved solution for safely storing and dispensing fuel in demanding environments. Built for job sites, farms, and industrial operations, these double-walled steel tanks are designed for easy transport, secure storage, and hassle-free refuelling.
Whether you’re powering equipment on a construction site or maintaining a fleet in the field, AceCube tanks deliver reliable fuel access when and where you need it.
Enhanced Design Features

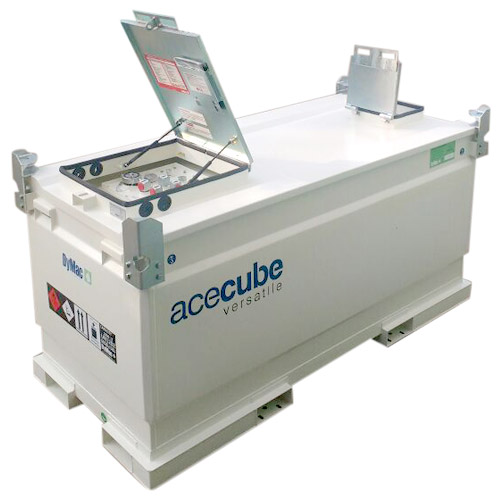

The AceCube Versatile Tank comes equipped with two galvanized hatch lids and galvanized stacking corners. The primary hatch lid opens up to a component ports plate. The component ports plate doubles up to act as a manhole cover. This doubling up of design features has allowed room on the top lid of the AceCube tank for a secondary hatch plate. The AceCube is a 110% fully bunded design.
Dispensing & Accessibility

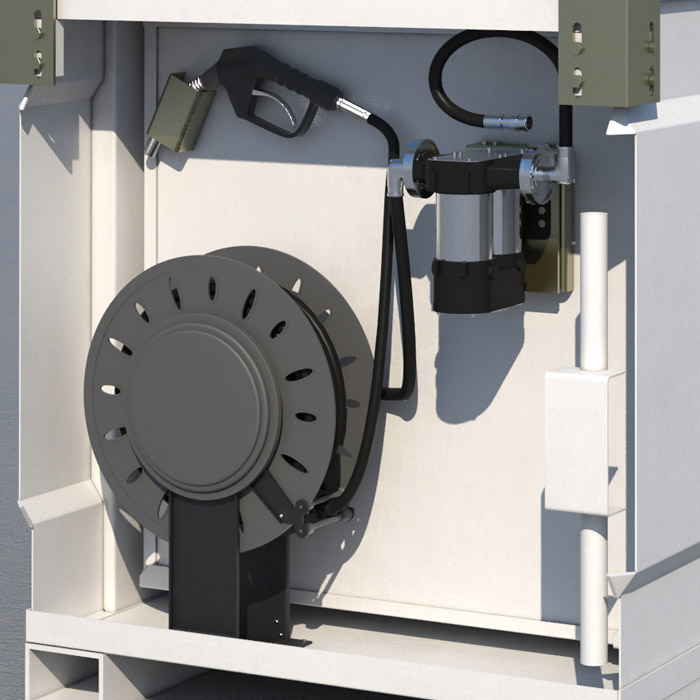

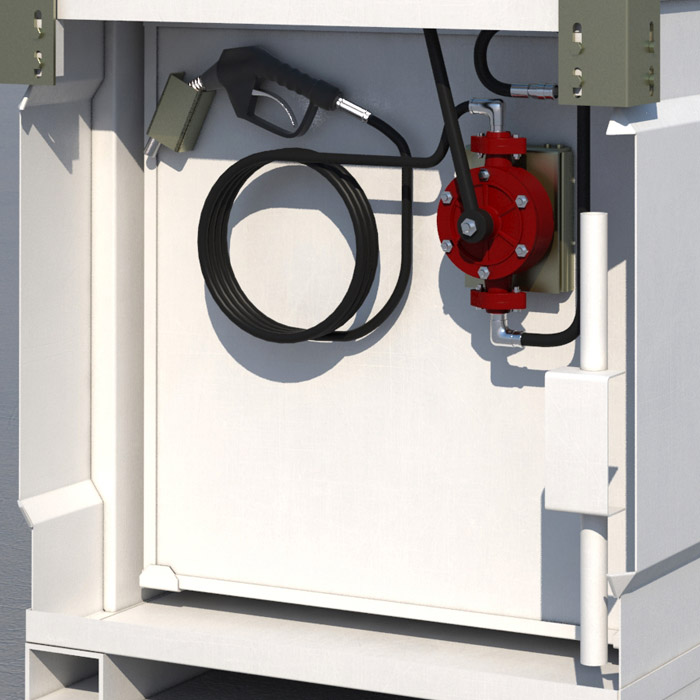

The AceCube Versatile Tank has a unique extra large equipment chamber with an innovative universal bracket system that can carry various pump dispensing kits, electric pumps, rotary hand pumps, and retractable hose reels.
Transportable & Portable
The AceCube Versatile IBC Bunded Fuel Storage Tank comes with UN31A/Y certification. This allows for safe transportation on all major roadways when full of fuel under ADR regularions.
Maintenance & Environment

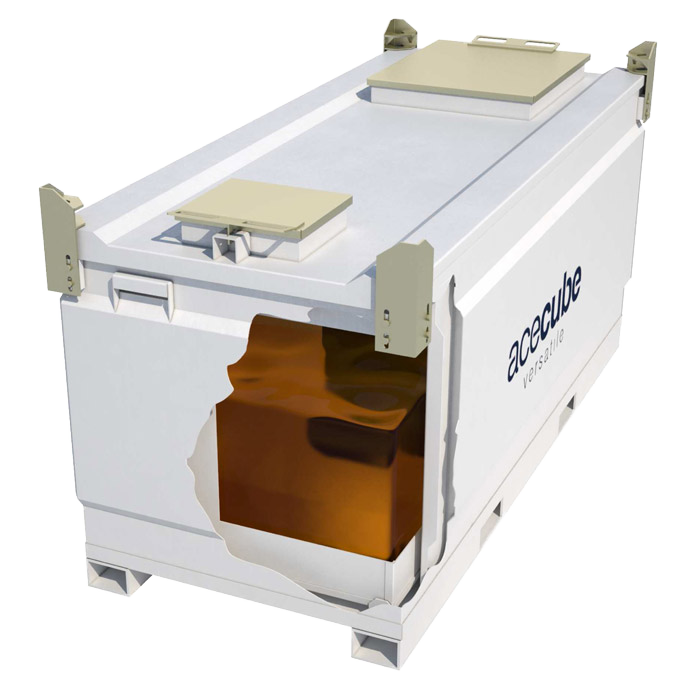

The unique 3 tier component design allows the inner tank to be completely removed and disconnected, meaning it is unencumbered during cleaning and inspection. This design also allows for an easy refurbishment and enhances ROI.

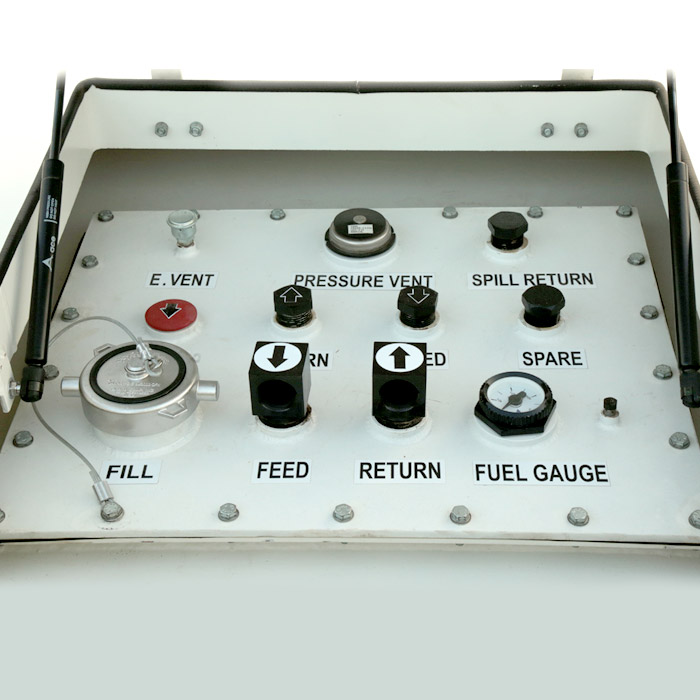

Convenient Fittings Plate
The AceCube features a convenient fittings plate with 3 letterbox openings making it easy to connect multiple generators and industrial machines simultaneously. The system is secure and lockable while in use.
Stacking & Racking

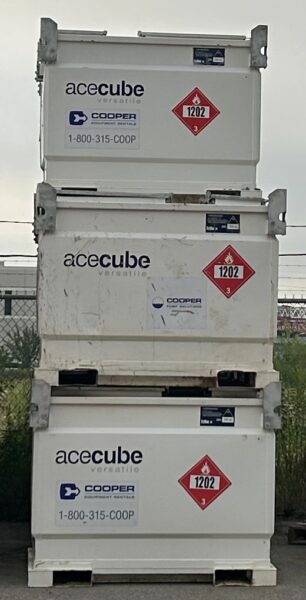

AceCube tank designs are suited to worldwide transport. They are “stackable and rackable” into 40ft shipping containers and are also stackable 2 high when empty and 3 high when full.
Applications
Prime Fuelling
The AceCube Range can be used for an array of direct fuelling applications, including providing bulk fuel supply to on-site water pumps or critical power generators.
Emergency
The range is widely used as a backup fuel source for emergency situations. Its unique and versatile design allows it to be transported or lifted while full of fuel and the “stackable and rackable” transport composition makes it ideal for quick deployment.
Standby Fuel
The AceCube Versatile Tank Range can be used as a secondary or standby fuel source, for refuelling of machinery and equipment on site in quarries and on farms.
Available Models
Model |  ACV-450L |  ACV-950L |  ACV-2000L |  ACV-3000L |  ACV-4500L |
Capacity | 450 L / 119 gal | 950 L / 251 gal | 2000 L / 528 gal | 3000 L / 793 gal | 4500 L / 1189 gal |
Dimensions (mm) - (L x W x H) | 1466 x 1066 x 853 | 1643 x 1099 x 1296 | 2613 x 1179 x 1296 | 2613 x 1685 x 1296 | 3111 x 2108 x 1296 |
Dimensions (ft) - (L x W x H) | 4' 9" x 5' 5" x 2' 8" | 5' 5" x 3' 7" x 4' 3" | 8' 7" x 3' 11" x 4' 3" | 8' 7" x 5' 7" x 4' 3" | 10' 3" x 6' 11" x 4' 3" |
Outer Tank Thickness (mm) | 3 | 3 | 3 | 3 | 3 |
Inner Tank Thickness (mm) | 4 | 4 | 4 | 4 | 5 |
Tare Weight | 393 kg / 866 lbs | 606 kg / 1336 lbs | 916 kg / 2019 lbs | 1125 kg / 2480 lbs | 1500 kg / 3306 lbs |
Laden Weight | 814 kg / 1794 lbs | 1518 kg / 3346 lbs | 2796 kg / 6164 lbs | 3955 kg / 8719 lbs | 5910 kg / 13029 lbs |
Safe Fuel Fill Level | 428 L / 113 gal | 903 L / 239 gal | 1900 L / 502 gal | 2850 / 753 gal | 4275 L / 940 gal |
Documentation |
*Calculations are based on safe fills levels at 95% total tank capacity & specific gravity of diesel as 0.9.
PIUSI Fuel Transfer Pump
Reliable, Explosion-Proof Performance for Safe Fuel Dispensing

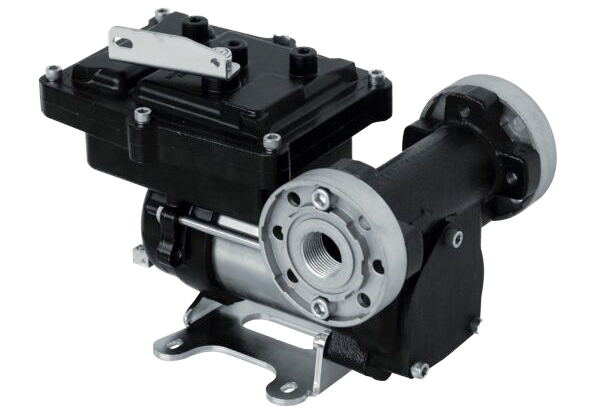

Compact, explosion-proof, and certified for use in hazardous environments, the PIUSI EX50 Pump delivers up to 50 L/min of diesel, gasoline, or kerosene transfer power. Its cast iron body, integrated bypass valve, and anti-noise filter ensure reliable, quiet operation with minimal wear. Available in both AC and DC versions, the EX50 is built for mobile fuelling and stationary installations where safety and performance are critical.
Designed for Performance and Safety
The PIUSI EX50 features a compact and sturdy design, built with flanged components that allow for quick, secure connections without the need for sealant. An integrated anti-noise filter ensures quiet operation, while built-in thermal protection safeguards the motor during extended use. The drum version includes a suction unit with an integrated filter to help maintain clean fluid transfer, and a UL-listed motor is available for added compliance and safety.
Copyright © PIUSI
ATEX Certified Quality
The PIUSI EX50 Pump is ATEX/IECEx certified and complies with the standards in place to prevent explosions inside or outside the pump, due to components that can trigger the transferred fluid or the surrounding atmosphere. The PIUSI EX50 is safe and reliable for use in potentially explosive atmospheres.
Engineered for Reliable, Long-Term Operation
The PIUSI EX50 is designed for safe and efficient transfer of flammable fluids from a wide range of tanks. Available in both AC and DC models, it features a compact cast iron body for maximum durability. The pump is equipped with a built-in bypass valve and delivers flow rates of up to 50 L/min, while maintaining low power consumption to extend service life. An integrated anti-noise filter ensures quiet operation and electromagnetic compatibility (EMC). Flanged components – such as the pump, flow meter, and filters – can be mounted or replaced quickly and securely without sealant. Additional safeguards include a thermal protection system and a metal suction filter that helps prevent contamination and maintain optimal pump performance.
Supporting Documents
Parts Numbers for AC Version of EX50 Pump
Numéro de pièce | Ref | Description |
R18794000 | 10 | KIT COVER CHAMBER |
R18090000 | 11 | KIT ROTOR w/ KEY |
R1817600A | 13 | KIT FLANGE |
R18801000 | 14 | KIT GASKETS/O-RINGS PUMP |
R18793000 | 15 | KIT BY-PASS PUMP "NEW" |
R1732600A | 16 | BRACKET FOR SWITCH - PUMP |
R17027000 | 18 | SWITCH |
R18700000 | 20 | KIT NR. 5 BLADES + NR. 5 SPRING |
F1808900A | 24 | KIT PLATE PUMP |
R18805000 | 9015 | KIT BY-PASS PUMP EX50 "OLD" |
R19793000 | 26 | BLISTER KIT 10 pcs FUSES |
